S5 Series — Dual-Side Sunlight-Readable Hanging Displays

Engineered for dual-sided advertising in high-traffic areas, S5 maintains vivid images at 2500–5000 cd/m² and protects the panel with intelligent temperature control that starts ultra-quiet fans above 45°C and derates power to 70% at 65°C. Brightness is managed by an ambient light sensor and a manual knob; audio comes from built-in dual 8-ohm speakers.

Typical Configurable Specs

Brightness: 2500–5000 cd/m² with automatic light sensor and manual dimming.
Resolution: 32/43/49 at 1920×1080; 55/65/75 model-dependent (e.g., 55″ at 3840×2160).
Contrast/angles/response: 1300:1; 89°/89°/89°/89° viewing; 6 ms; 16.7M colors (typical).
Android media player option: RK3288, quad-core 1.8 GHz, Mali-T764 GPU, 2 GB RAM, 16 GB storage (expandable), HDMI 2.0 up to 4K@60 (customizable), LVDS, RJ45, SD, multiple USB; Android 5.1.1 or Android 9.
Power: 100–240 V AC; typical max power by size (e.g., ≤115 W 32″, ≤130 W 43″, ≤220 W 49″, ≤260 W 55″).
Thermal design and protections as described under Key Selling Points.

Key Points:

2500–5000-nit peak brightness for direct-sun dual-side visibility in mall/store installations.
80% aluminum chassis for efficient heat dissipation; suitable for indoor/semi-outdoor use without extra cooling.
Smart thermal safeguards: fans auto-start >45°C; power derates to 70% at 65°C; auto-recovery when <65°C; fans stop <45°C.
Dual brightness control: ambient light sensor plus manual adjustment.
Built-in dual 8-ohm speakers with adjustable volume and low noise.

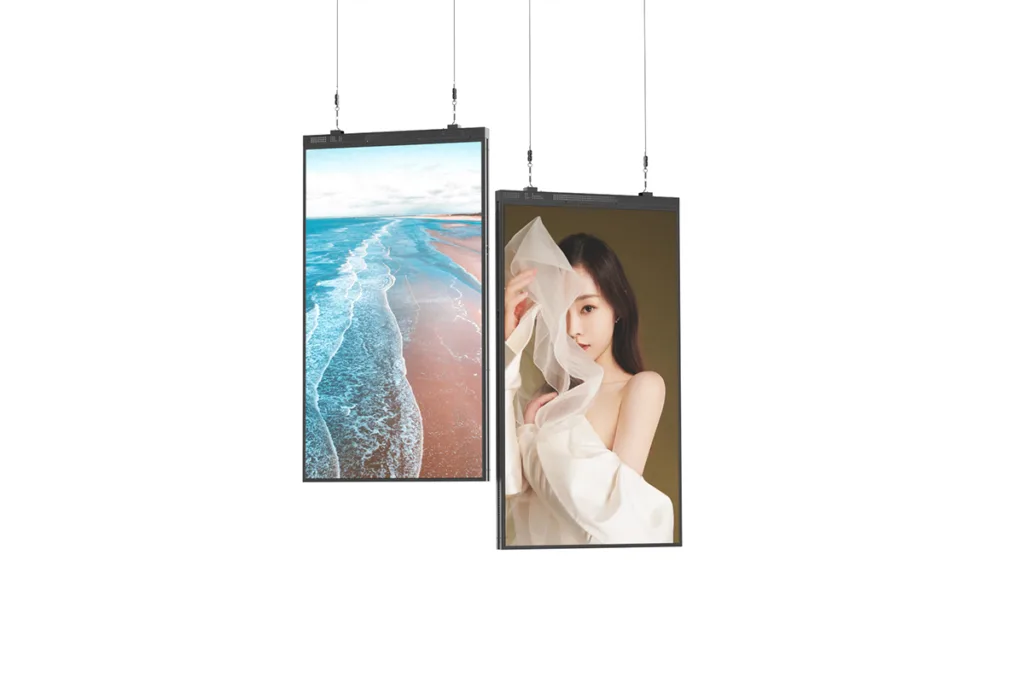

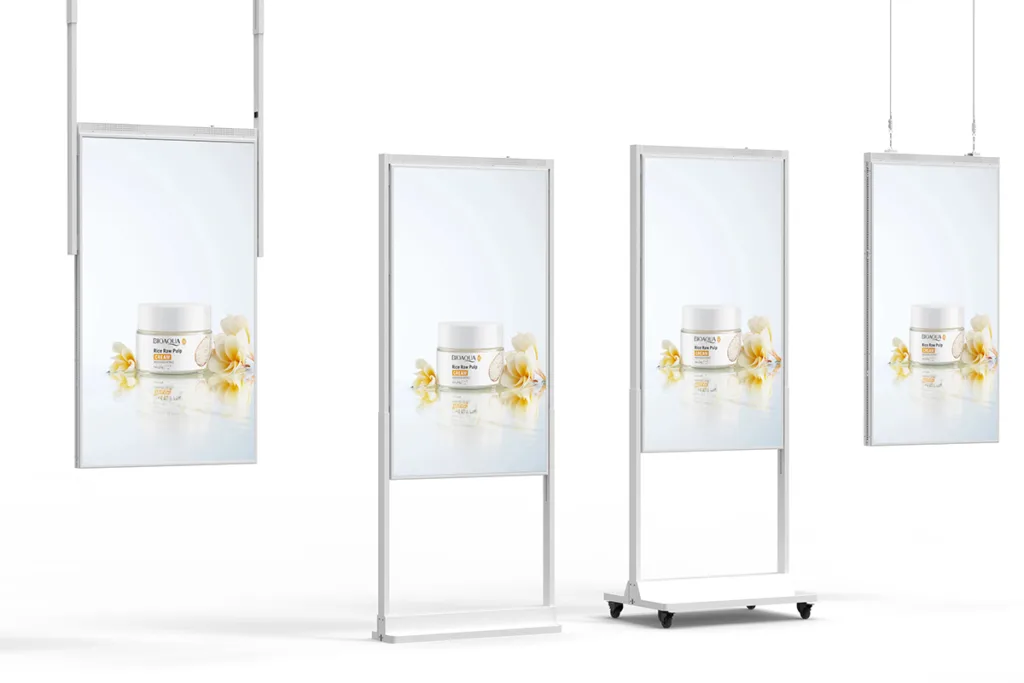

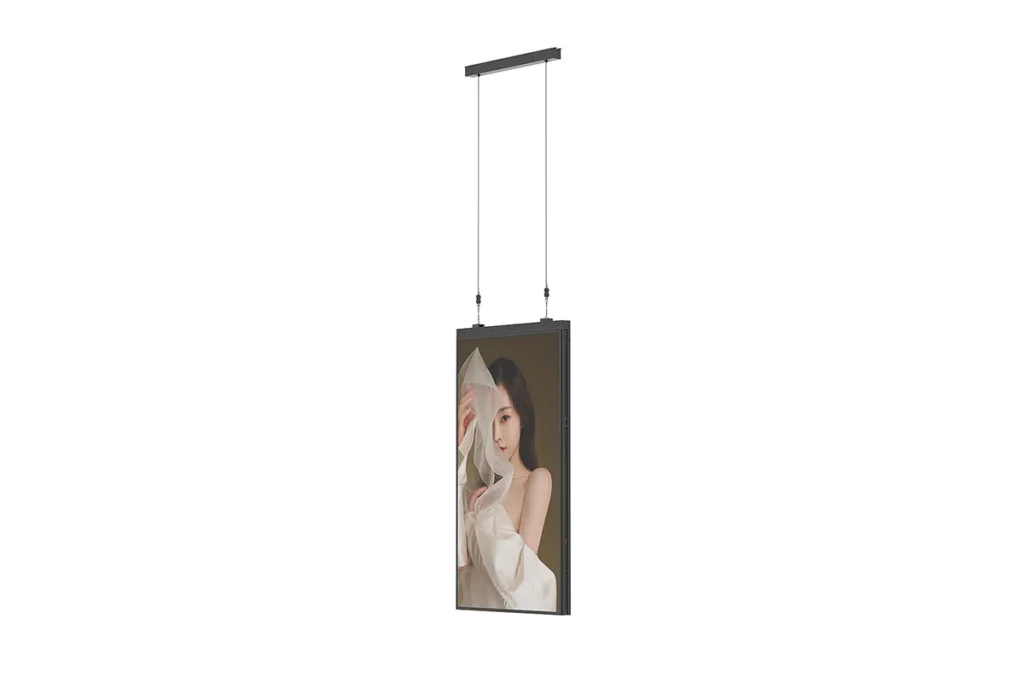

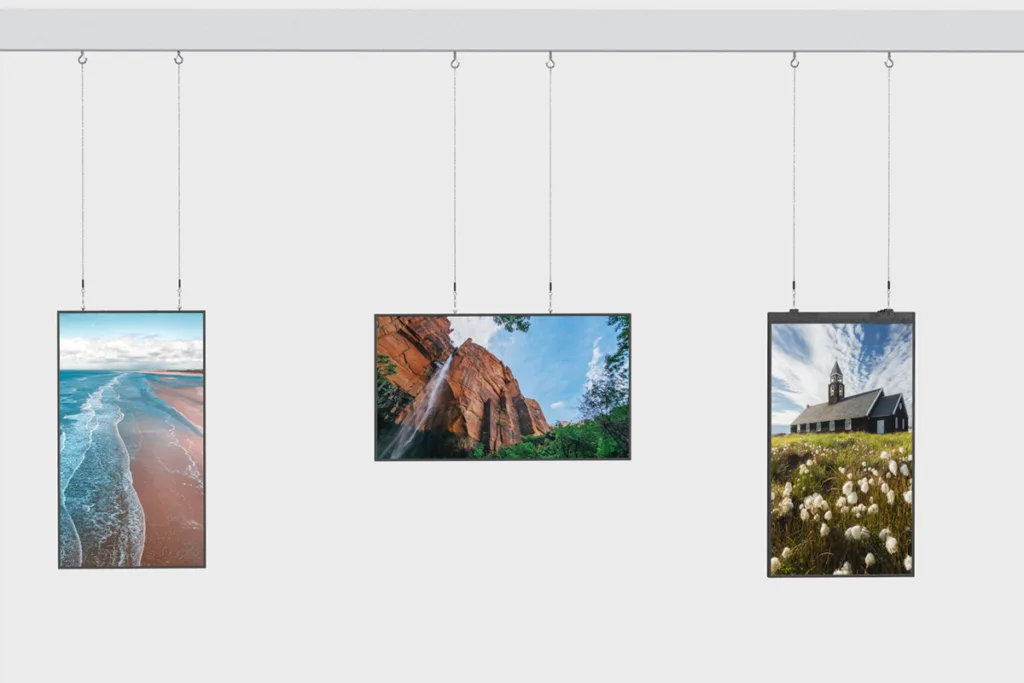

Dual-side hanging design with options for wire rope or telescopic pole mounting.
Clear installation rules to avoid black screens and condensation damage.

Manufacturing & Quality Assurance Note:

All S5 units are assembled in controlled production lines with systematic component traceability, full-function burn-in testing, pixel inspection and calibration to ensure uniform color and brightness across batches. Custom assembly services (touch lamination, outdoor housing, custom paint/branding) are available for volume orders.

What sizes and model numbers are available for S5?

32″ to 75″ dual-side hanging displays under models WD320T-3, WD430T-3, WD490T-3, WD550T-3, WD650T-3, WD750T-3

How bright is S5 and how is brightness controlled?

2500–5000 cd/m² with dual control—ambient light sensor plus manual knob.

What temperature protections are built in?

Fans auto-start above 45°C; at 65°C the controller limits power to 70%; when internal temperature drops below 65°C, normal power resumes; fans stop below 45°C.

How should I install S5 for dual-side hanging?

Use wire rope or telescopic pole mounts; keep at least 20 cm clearance from any front glass; if space is tighter, use a high-temperature LCD configuration and keep about 10 cm to the glass.

Any power and safety notes?

Unplug first. For the front surface, use a soft lint-free cloth and mild detergent if needed; avoid volatile solvents. For the enclosure, use a dry soft cloth or a cloth slightly dampened with mild detergent; do not use oily solutions; keep liquids away to prevent failures or electric shock.
